Description:

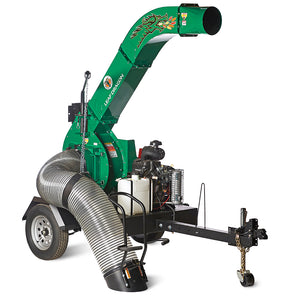

Ideal for municipalities and large contractors, the Leaf Dragon™ features electric start and 6900 CFM of suction power to burn through cleanups fast! The trailered setup with ergonomic boom handling offers hassle-free curbside pickup and a 3-position handle provides easy and versatile hose handling. The Leaf Dragon's set up offers 45 square feet of clean-up coverage, 2x the reach of other units on the market. This model has a quick-access door to inspect the impeller and liner, as compared other units on the market with cumbersome and time-consuming access. The 12" wide, 10-gauge steel discharge chute spreads to load and includes an angled elbow that reduces wear by up to 50%. The Leaf Dragon is powered by a Vanguard® EFI engine, offering easy automotive-type cold weather starting as well as fuel savings of to 25%*.

Specifications:

• Engine Brand: Vanguard
• Model Number: DL3700VETR
• Gross Horsepower (HP): 37.0
• Hose Dimensions: 16” x 10’ (41 cm x 3 m)
• Impeller Cutting Points: 12
• Number of Blades: 4
• CFM (Cubic Feet per Minute): 6900
• Discharge: 11” square elbow to 12” (31 cm) outer diameter round
• Starter: Electric Start
• Weight: 1730 lbs – no fuel (785 kg)
• Length: 118” – 130” (2.9 – 3.3 m)
• Width: 69” (1.75 m) (hose in transport position)
• Height: 121.25” (3 m) (discharge height), 123” (3 m) (tallest point on machine)
