Description:

UltraCut™ Series 4 Decks

The full-floating deck uses maintenance free spindles with splined blade drivers to stop bolt tightening on impacts. The bearings on idler arm pivots are also maintenance free.

Less Time At The Pump

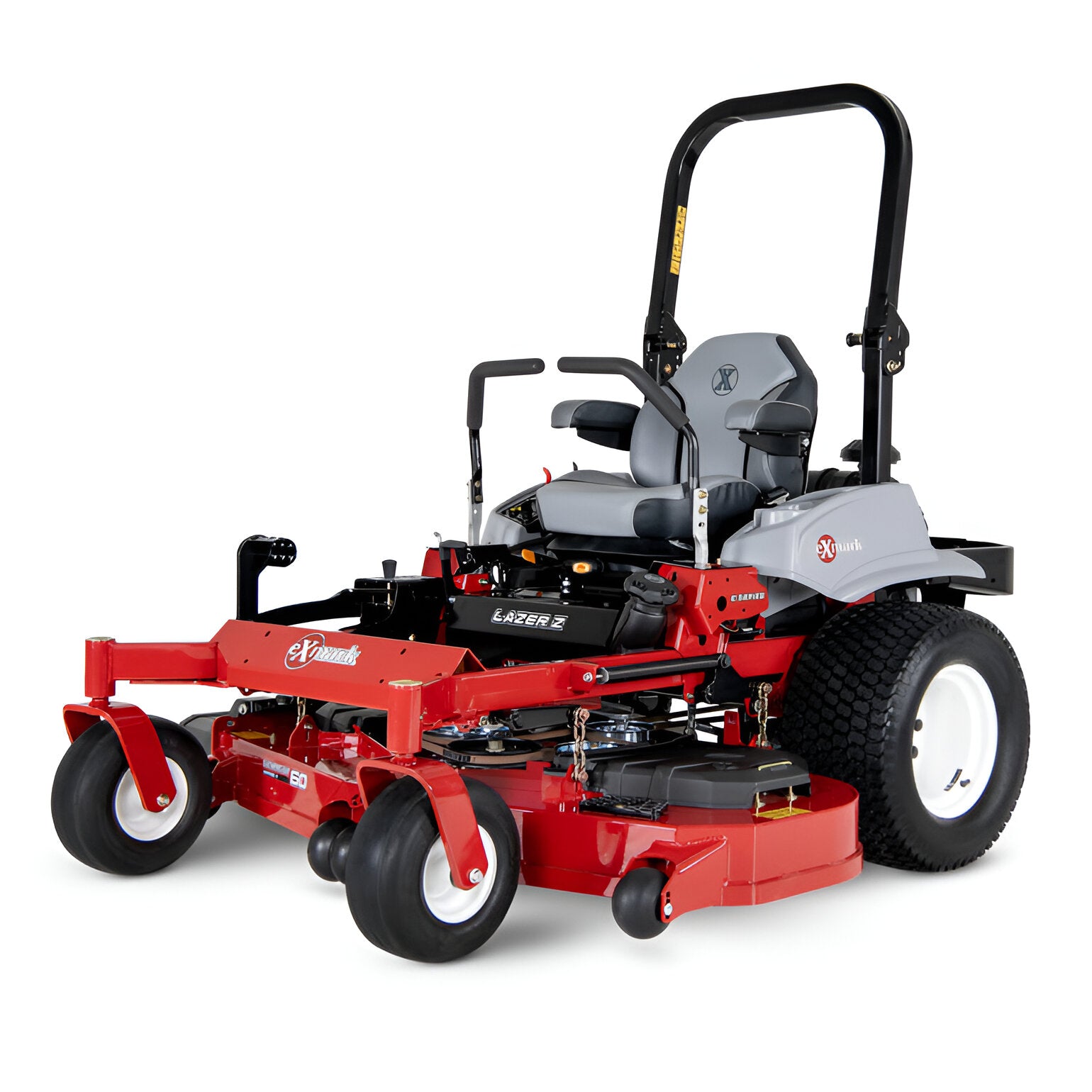

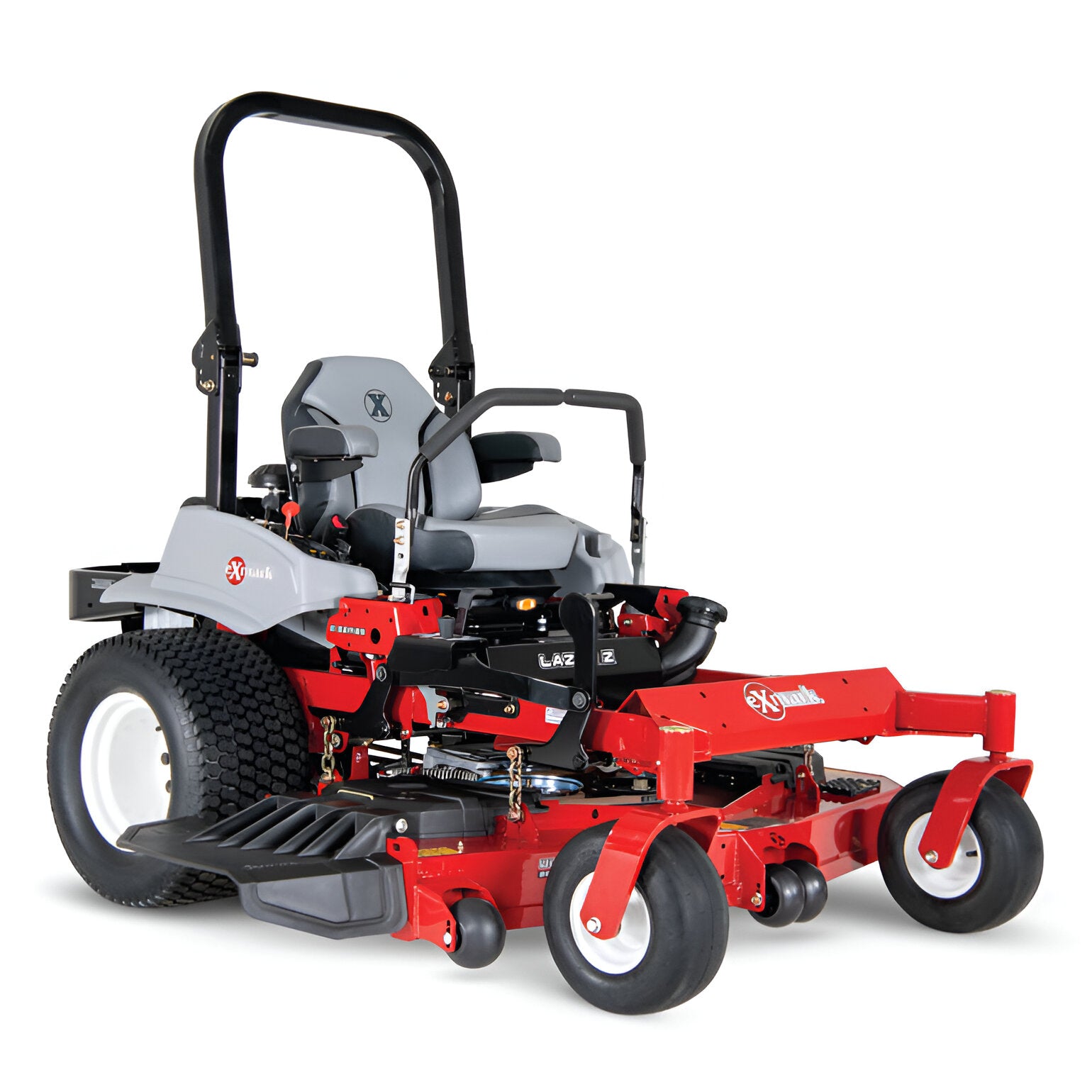

The Lazer Z E-Series features a single 9.5-gallon fuel tank with one fill location

Fewer Grease Points

With just two grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Sealed spindles don’t require greasing.

Tool-less Belt Removal

Deck and hydro belt can be installed without using any tools.

Unibody Frame Our one-piece body frame is a classic case of "less is more." Because, fewer parts equal more strength and more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame

is actually a case of “less is way more.

Specifications:

Engine

• Model: Kawasaki® FX730V V-Twin
• Air Filter: Heavy-duty

Drive System

• Type: Dual Hydro-Gear® ZT-4400 with charge pumps, relief valves, and independent, replaceable filters
• Forward Speed: 11 mph

PTO Engagement

• Type: MagStop Electromagnetic 175 ft-lb clutch with spot brake

Fuel System

• Fuel Capacity: 9.5-gallon single fuel tank

Deck

• Size: 60"
• Series: UltraCut Series 4
• Construction: 10-gauge high-strength alloy top
• Lift: Foot-controlled
• Blade Quantity: 3 blades
• Blade-Tip Speed: Approximately 18,500 fpm
• Cutting Height: 1.5" to 5.5" in 0.25" increments

Equipment

• Caster Tires: 13 x 6.5-6, smooth tread, pneumatic
• Drive Tires: 24 x 12-12
• Steering Control: Hydraulically dampened twin levers
• Parking Brake: Lever-actuated internal wet disc brake
• Seat: Suspension seat with foam flip-up armrests
• Electrical System: 12-volt battery with 15-amp alternator
• Standard Features: Engine hour meter and cup holder

Accessories (Optional)

• 3-Bushel Bagger, 12V Adapter, 12V Power Port, Anti-Scalp Roller, Engine Maintenance Kit, Equipment Cover, Extended Drive Lever, Floor Mat, Full-Suspension Seat, Harness Add-On Accessory, Hitch, Hydro Maintenance Kit, Jack and Mount Receiver, LED Light, Micro-Mulch System, Operator Controlled Discharge, Seat Isolation System, Slope Sensor, Sunshade, Tractus Tire, Trash Container, Turf Striper, UltraVac Collection Systems, Custom Ride Seat Suspension.

(Accessories may not fit all models. Check with the dealer for compatibility.)

Warranty

• Limited Warranty: 5-Year or 1,250 Hours (No Hour Limit for First 2 Years)

Weight and Measurements

• Width: 72.7 in.
• Length: 84.6 in.
• Height: 70.1 in.
• Weight: 1,080 lbs.
