Description:

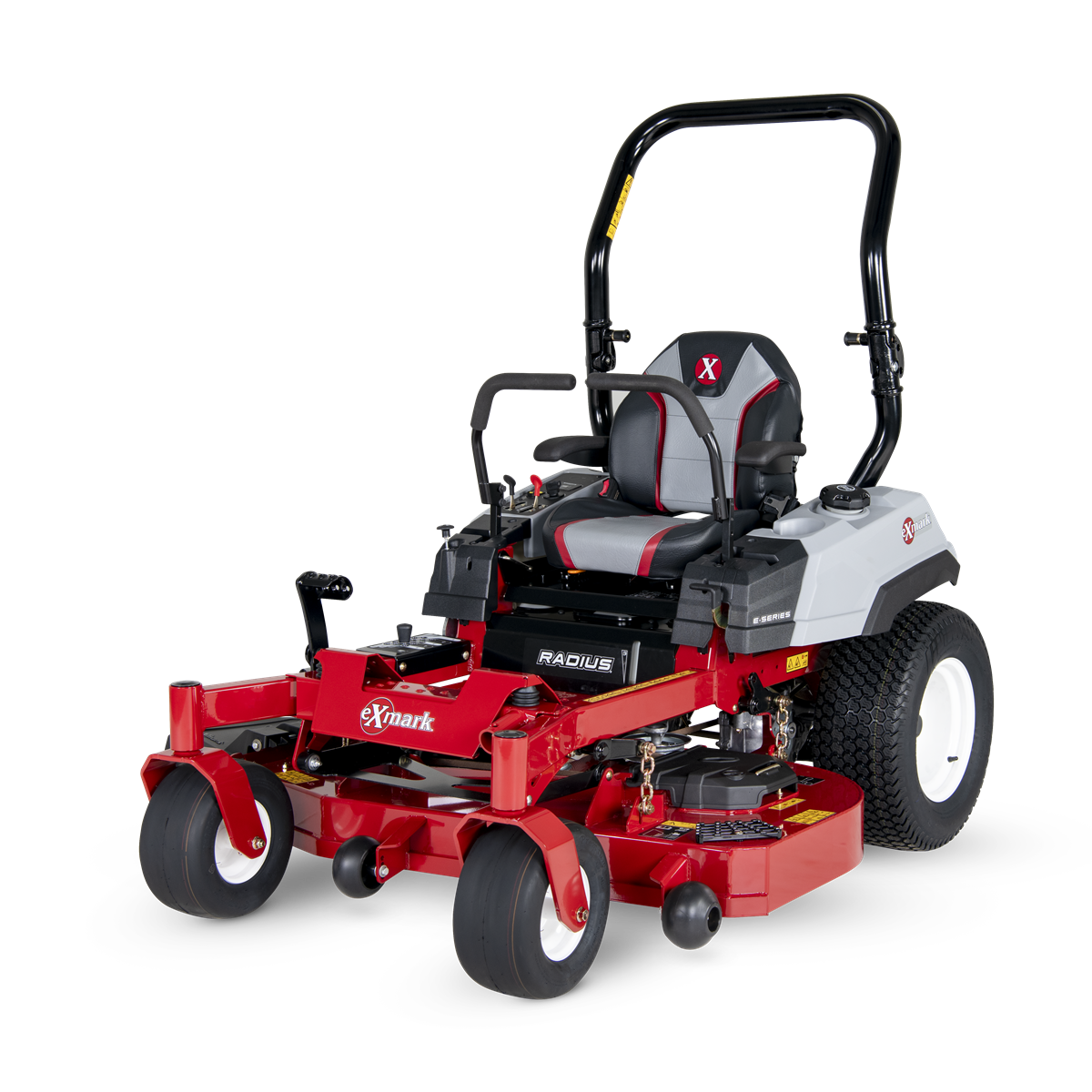

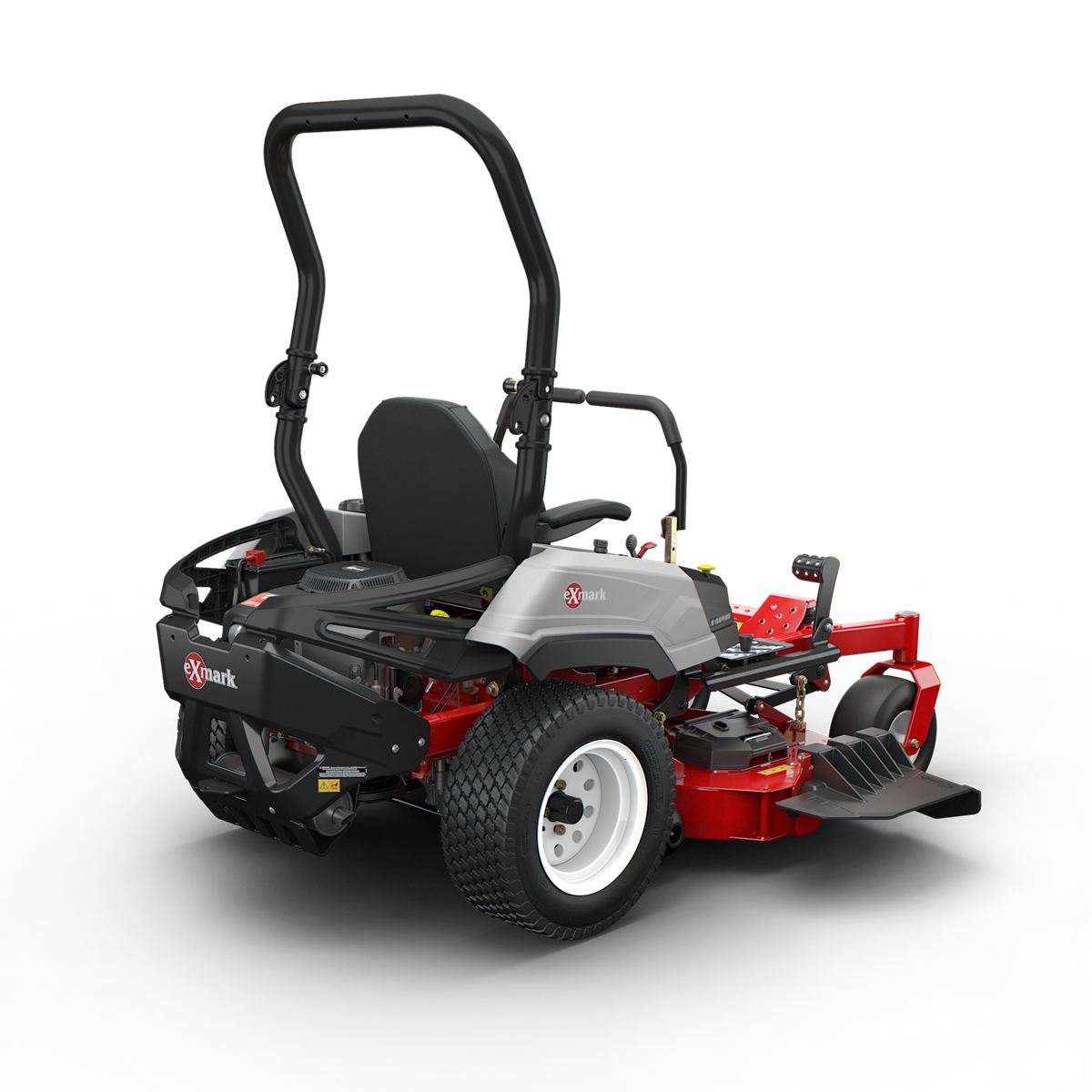

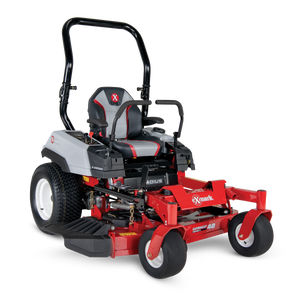

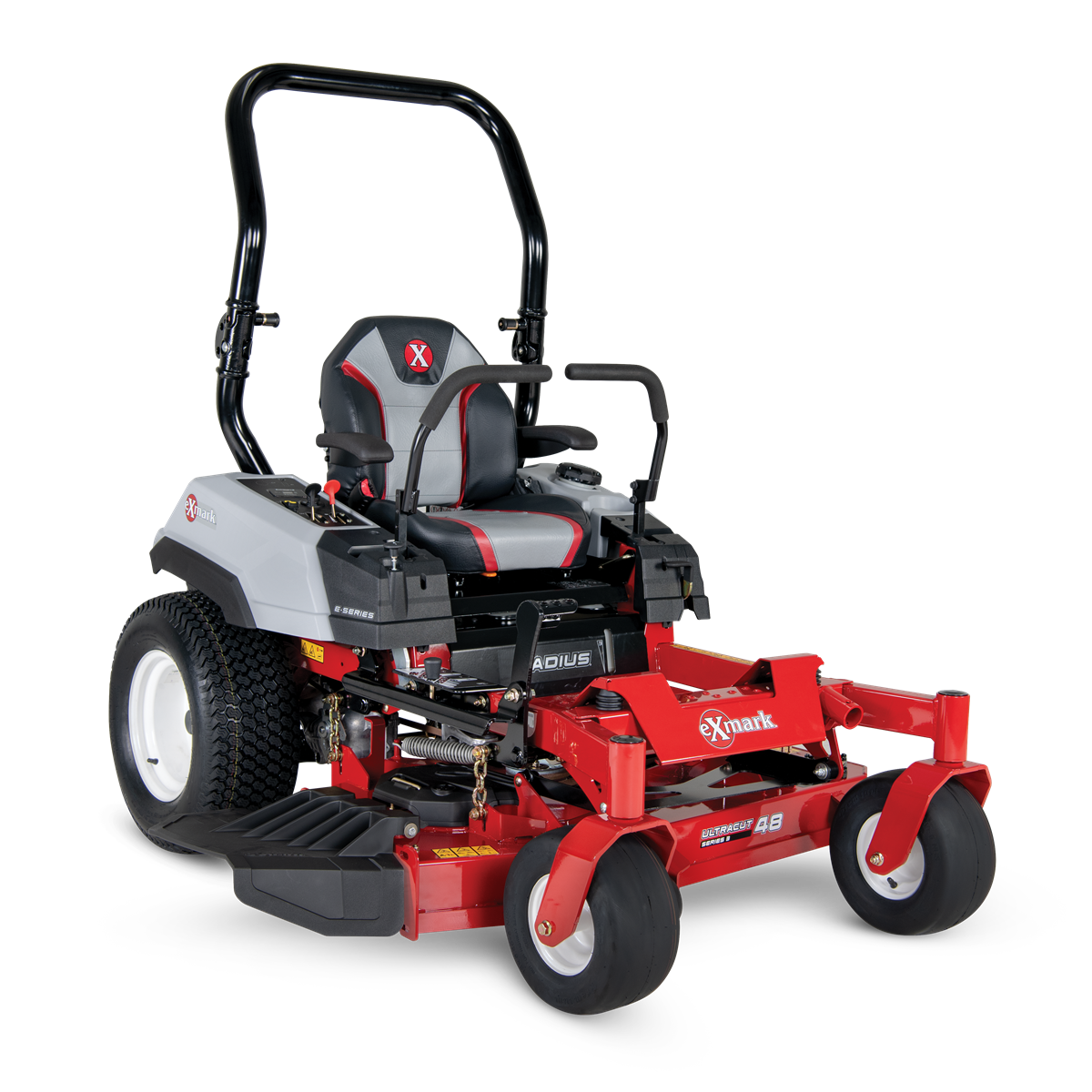

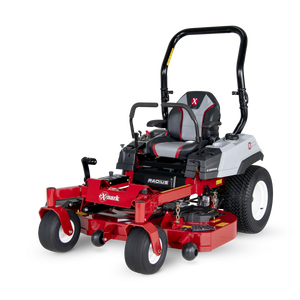

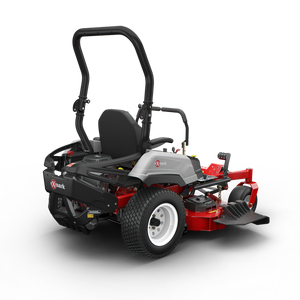

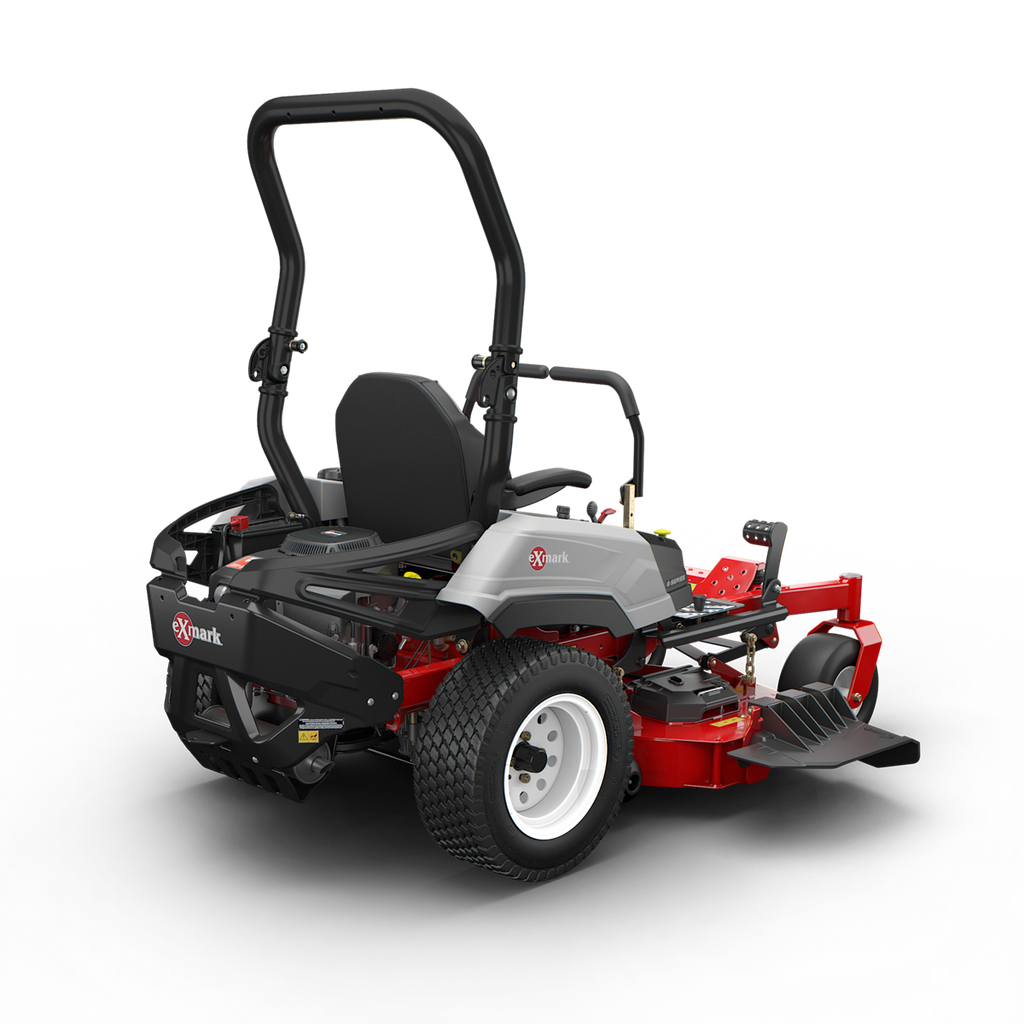

Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and users seeking professional performance. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on.

Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension options and a new side pod design (2023 models) that places vital controls right at the operator's fingertips.

Specification:

• UPC: 193308225326
• Engine Brand: Exmark
• Engine Model: LC2P77F
• Engine Displacement: 708 cc
• Engine Series: V-Twin
• Fuel System: Carbureted
• Engine Speed: 3,600 rpm
• Starter Type: Electric
• Fuel Type: Gasoline
• Fuel Capacity: 7-gallon single tank (single fill location)
• Air Filter: Standard engine manufacturer's air filter
• Carb Compliant: No
• Engine Spec: K5045

Transmission & Drive

• Transmission Type: Hydrostatic
• Transmission Brand: Hydro-Gear
• Drive System: Hydro-Drive
• Drive Description:
• Dual Hydro-Gear ZT2800 hydrostatic transmission with charge pumps, relief valves, and independent, replaceable filters
• Transmission Speeds: Infinitely Variable
• Speed:
• Forward: 0–8.0 mph
• Reverse: 0–5.0 mph
• PTO Engagement: MagStop electromagnetic 125-ft-lb clutch
• Drive Wheel Release: Allows unit movement without engine running

Chassis & Frame

• Tractor Frame:
• Unibody welded heavy-duty 2" x 3" rectangular tubular steel
• Steering Control:
• Hydraulically dampened twin levers adjustable fore/aft and with 2-position height adjustment
• Parking Brake: Lever-actuated pawl brake
• ROPS:
• 2-post foldable ROPS standard with seat belt and latch
• Cup Holder: Yes
• Electrical: 12V battery with 15-amp alternator
• Standard Features:
• Engine hour meter, cup holder, tow hitch, jack receiver
• Seat:
• High-back with foam-padded cushion, armrests, and integrated safety switch
• Onboard Intelligence: None

Deck System

• Deck Style: Floating Deck
• Deck Style Description:
• Full-floating UltraCut Series 3
• Side discharge standard
• Molded discharge chute
• Option to bag or mulch
• Deck Width: 48"
• Deck Construction:
• 10-gauge high-strength alloy top (formed and continuously seam welded)
• 7-gauge side skirt
• Cutting Heights: 1.5" to 5.0" (adjustable in 0.25" increments)
• Deck Lift:
• Standard foot-controlled deck lift for height adjustment and transport position
• Blades: 2 blades at 24.5" each
• Blade Tip Speed: Approx. 18,500 fpm
• Blade Spindles:
• Sealed, non-greasable, no maintenance
• 7.30" cutter housing
• 17mm (.67") spindle shaft
• Hex blade drive
• Bag Capacity: N/A

Tires

• Caster Forks: .375" thick caster yoke arms
• Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic, with bushings
• Drive Tires: 22 x 9.5-12 Super Turf TL

Dimensions & Weight

• Length: 82.9"
• Width: 61"
• Height: 69.7"
• Curb Weight: 849 lbs

Safety

• Safety Package:
• Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators

Important Purchase Information

All equipment is professionally assembled, tested, and ready to use, and we'll walk you through operation at pickup. Your product will also be warranty registered at no extra cost.

Online pricing reflects the cash price. Credit card pricing may vary.

Flexible financing through Synchrony Financial may be available for qualified buyers (0% for 24 months or 4.99% for 48 months). Documentation fees and/or surcharges may apply depending on the selected finance program.

Pricing is valid on current inventory only and may change without notice.

Contact us or request a quote for the most current pricing and availability.
