Description:

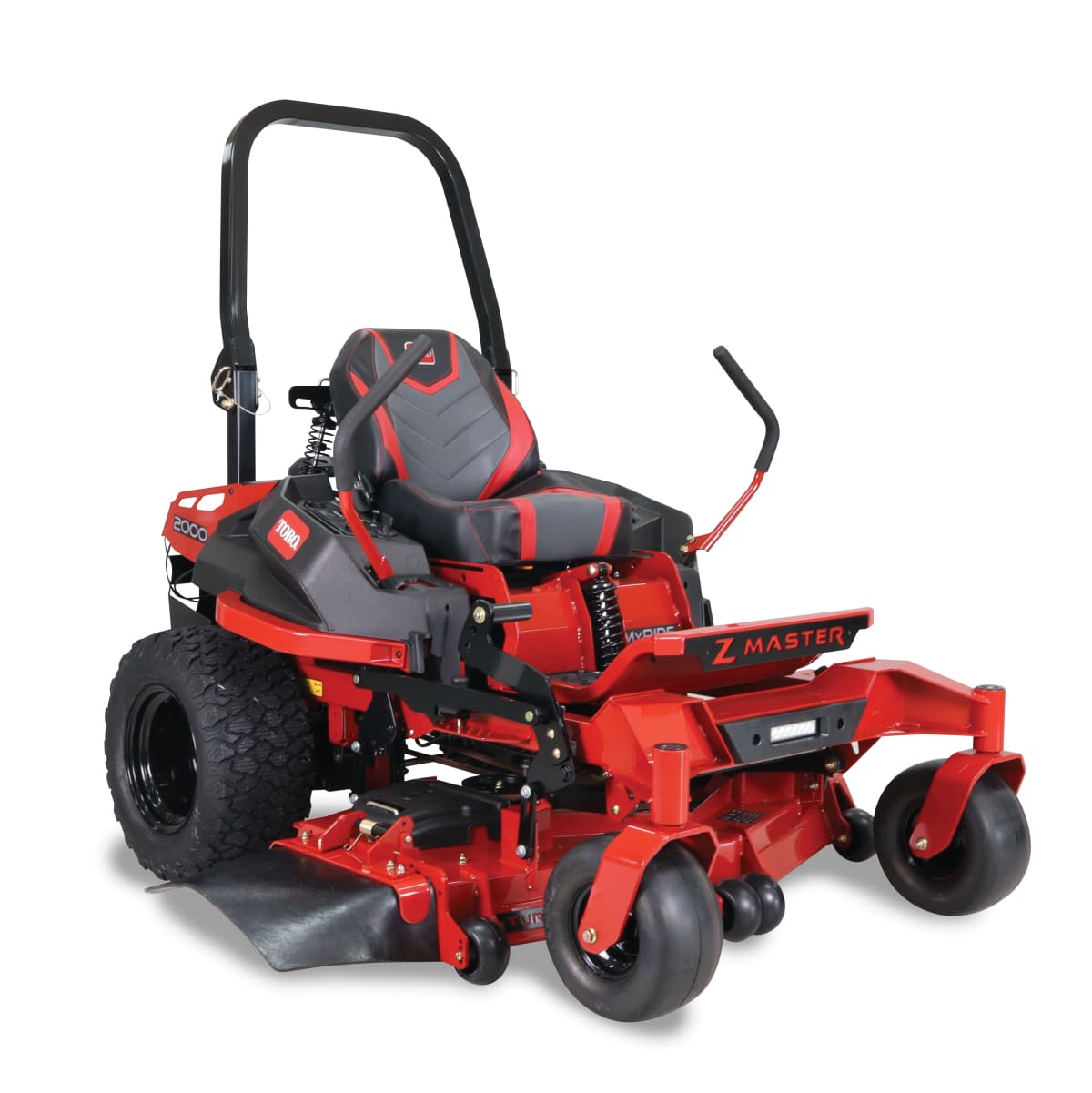

Heads will definitely turn when you’re towing one of the coolest bulls in our pen around town. But the Z Master® really shines once it’s off the trailer, as it’s bulging at the seams with commercial performance, reliability and efficiency at an unbeatable value.

Features:

High-strength steel deck
Powerful engine
Commerical-grade hydros
MyRIDE® on selected models

Specifications:

Model Number: 74491
Product Type: Commercial Zero Turn Mower
MyRIDE® Suspension System: No
Comfort Platform: Not included

POWER SYSTEM

Engine: Toro Commercial 24.5 hp* @ 3600 RPM
Air Cleaner: Heavy-Duty Donaldson® Canister-Style
Starter: Electric
Fuel Type: Gasoline
Fuel Capacity: 7 Gal. (26.5 L)
Digital Hour Meter: Standard

DRIVE SYSTEM

Hydraulic Drive System: ZT-3400 Integrated Pumps & Wheel Motors
Maximum Forward Speed: 10 mph (16.1 km/h)

TIRES

Drive Tires: 24" x 9.5" – 12" (61 x 24.1 – 30.5 cm)
Caster Tires: 13" x 6.5" – 6" (33 x 16.5 – 15.2 cm), Flat-Free Semi-Pneumatic

CUTTING SYSTEM

Deck Size: 52" (132.1 cm)
Deck Type: TURBO FORCE®
Deck Construction: 7/10-Gauge High-Strength Steel
Deck Lift: Extension Spring
Deck Depth: 5" (12.7 cm)
Blades: .204" (0.5 cm) Heat-Treated Steel
Blade Tip Speed: 18,500+ ft/min
Rubber Discharge Chute: Standard
Spindle Housing: 8" (20.3 cm) Diameter Aluminum
Spindle Shaft Diameter: 1" (2.5 cm)
Spindle Bearings: Maintenance-Free
Cutting Height: 1.5" – 5" (3.8 – 12.7 cm), 0.25" (0.6 cm) increments
Belt Type: Aramid Fiber V-Belt

COMFORT & FEATURES

Operator Seat: High-Back Suspension Seat with Armrests
Steering Controls: 1.4" (3.6 cm) Diameter Grips, Adjustable and Dampened
Folding ROPS: Standard
Tool Mounting Capability: Side Console / Rear Guard Ready
Lift Mechanism: Quick-Attach Jack Ready

DIMENSIONS & WEIGHT

Weight: 890 lbs (403.7 kg)
Length: 82" (208.3 cm)
ROPS Height (Folded): 49" (124.5 cm)
ROPS Height (Upright): 70.5" (179.1 cm)
Deck Clearance Width: 56.75" (144.1 cm)
Deflector Width: 67.25" (170.8 cm)

WARRANTY

Coverage: 4-Year / 750-Hour Limited Warranty
